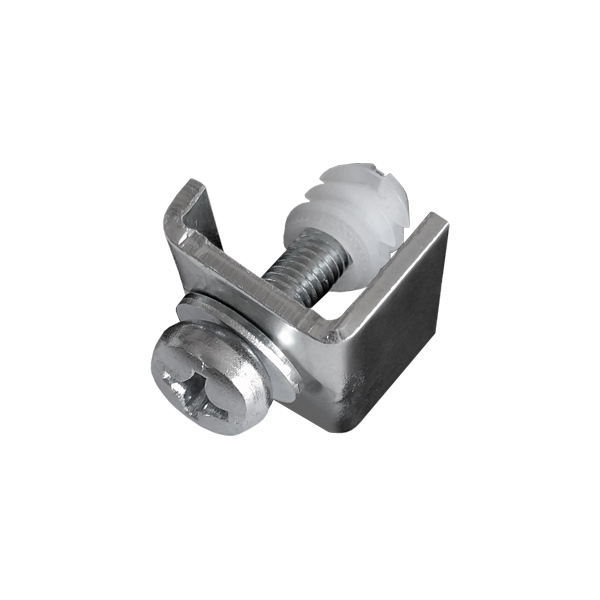

All of our sinks can be installed in the more traditional way, above the worktop (standard or top installation), or they can be installed under the worktop (undermount). The under-top installazione kit is supplied with models prepared for this type of installazione (ONE and CUBE series) and with the AM8620ST model. For all other models, the under-top one installation kit can be purchased separately as an optional accessory (code GANCIST10).

INSTALLATION METHODSONE 2
INSTALLATION METHODSONE 3
INSTALLATION METHODSONE 4
INSTALLATION METHODSONE 5
INSTALLATION METHODSONE 6
INSTALLATION METHODSONE 7
INSTALLATION METHODSONE 8

Installation tutorialone standard:

UNDERMOUNT INSTALLATION

The pictures show three typical ways of installing one under the worktop:

INSTALLATION METHODSONE 9

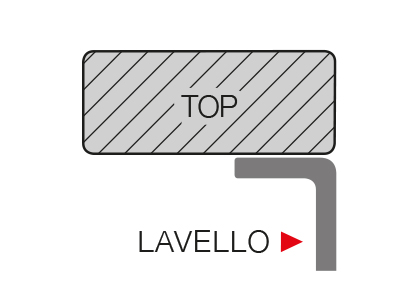

The edges of the countertop and the sink coincide. (Solution suggested by our company)

INSTALLATION METHODSONE 10
INSTALLATION METHODSONE 11

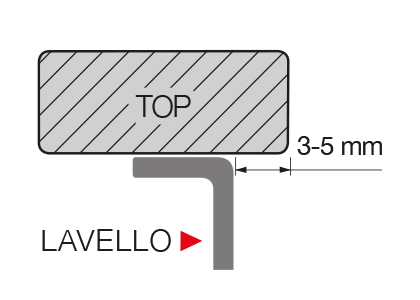

The top extends beyond the edge of the sink, covering it on all sides. The edge of the sink is hidden under the top.

INSTALLATION METHODSONE 12
INSTALLATION METHODSONE 13

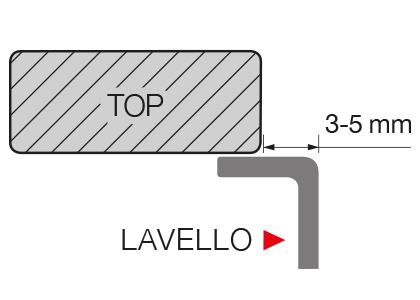

The edge of the sink is partially visible.

INSTALLATION METHODSONE 14
INSTALLATION METHODSONE 15
INSTALLATION METHODSONE 16
INSTALLATION METHODSONE 17
INSTALLATION METHODSONE 18
INSTALLATION METHODSONE 19

FLUSH-MOUNT INSTALLATION

INSTALLATION METHODSONE 20

On request, sinks in the ONE/CUBE and ELEGANCE/AMANDA series can be supplied for flush-mount installationone. The pictures show the processingone around the entire perimeter of the sink, in order to obtain an angle with inclinationone of 15°.

CORRECT PROCEDURE FOR DRILLING THE SINK

INSTALLATION METHODSONE 21
INSTALLATION METHODSONE 22

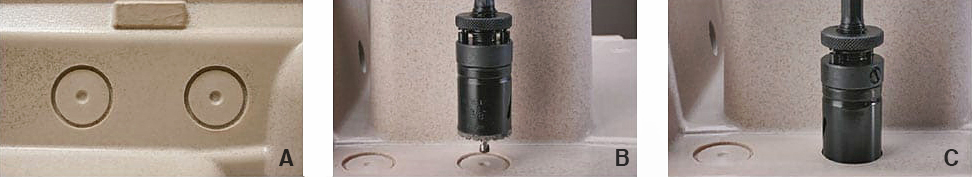

Plados-Telma sinks are equipped with pre-punched holes (figure A) positioned on both sides to choose where to place the mixer and accessories.

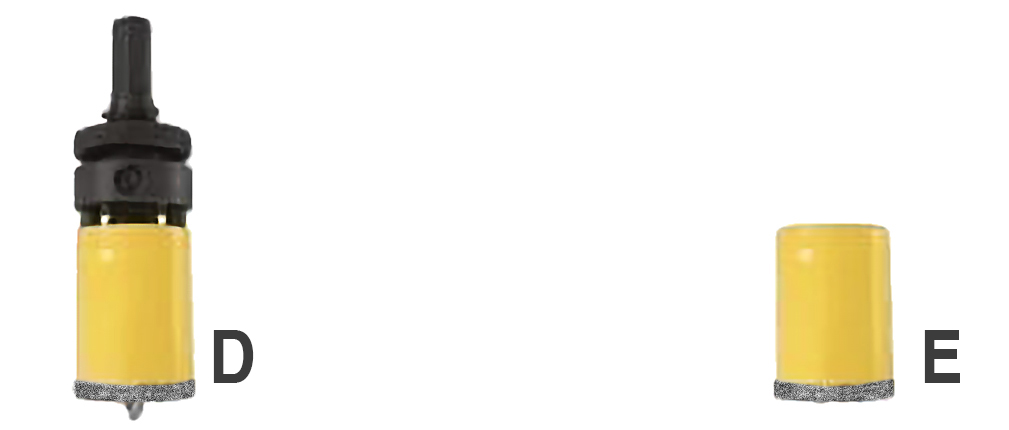

ATTENTIONONE! In order to avoid possible damage to the sink, it is advisable to drill these holes using 35-37 mm diamond drills following the procedure illustrated in pictures B and C. On request Plados-Telma supplies the complete drilling kitone (code KITFRESA - picture D) consisting of
joint + cutter, or cutter only (code FRESA - photo E).

INSTALLATION METHODSONE 23

ACCESSORIES SUPPLIEDONE

The following accessories are included with the sink:

? Ø90 mm (3 1/2) stainless steel drain outlet.
? Sifone savespazio with dishwasher connection.
? Fixing hooks.

All our sinks are individually packed in sturdy cartone boxes. The most delicate parts of the sink are protected by special reinforcements.
